1200 – Straight Hopper Style Conveyor

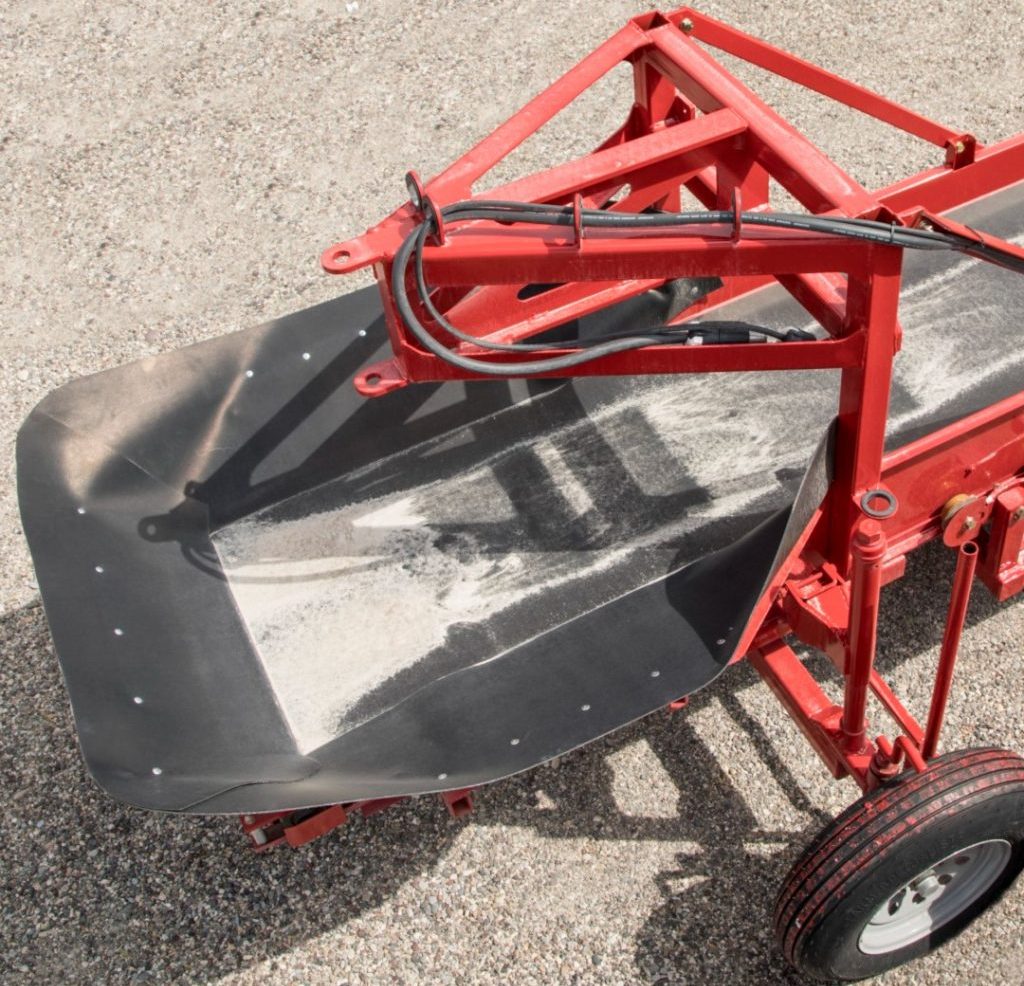

Straight conveyor with Hopper, designed for seamless and efficient material transfer.

Specifications
Capacity(loading): 200 to 400 Tons or 181.44 to 362.88 Metric Tons
Length Range(Operating): 30 to 40 Feet or 9.14 to 12.19 Meters
Model Length: 30 to 40 Feet or 9.14 to 12.19 Meters
Model Width: 30 to 42 Inches or 76.20 to 106.68 Centimeters

Weight(base machine): 2000 to 2900 Pounds or 907.19 to 1315.43 Kilograms
Conveyer Drive Size: The drive rollers are 6 inches in diameter.

Attachment/Options
Voltage Options: We offer 230 Volt, 380 Volt, 480 Volt and 600 Volt options all for 3 phase.
Speed:
Transportation: We offer a tow tongue on either the discharge end or the hopper end.

Specifications

Model Length: 30 to 40 Feet or 9.14 to 12.19 Meters
Model Width: 30 to 42 Inches or 76.20 to 106.68 Centimeters

Weight(base machine): 2000 to 2900 Pounds or 907.19 to 1315.43 Kilograms
