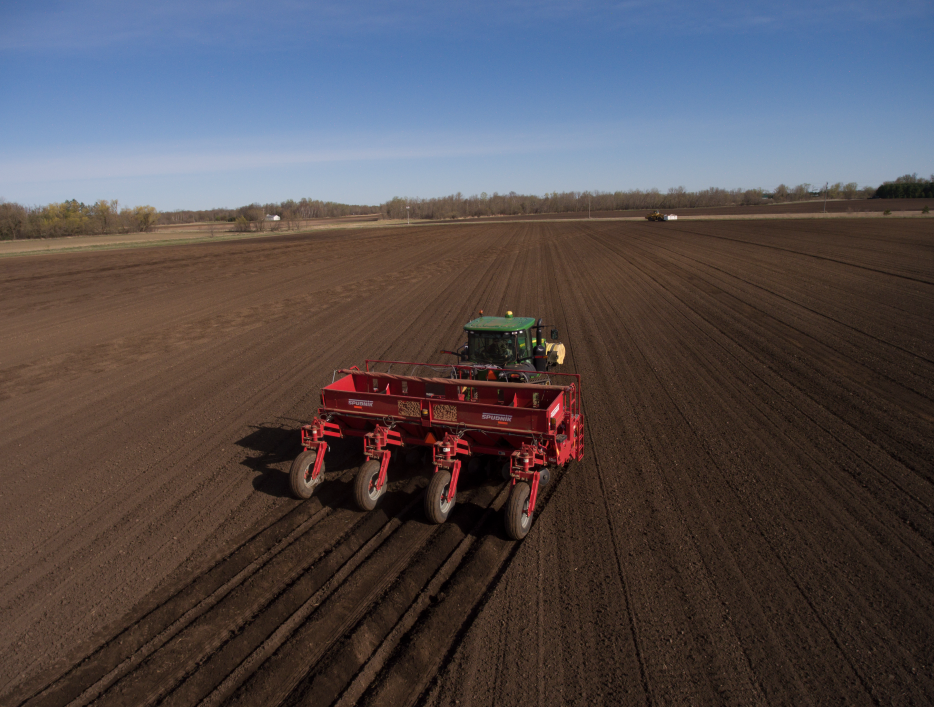

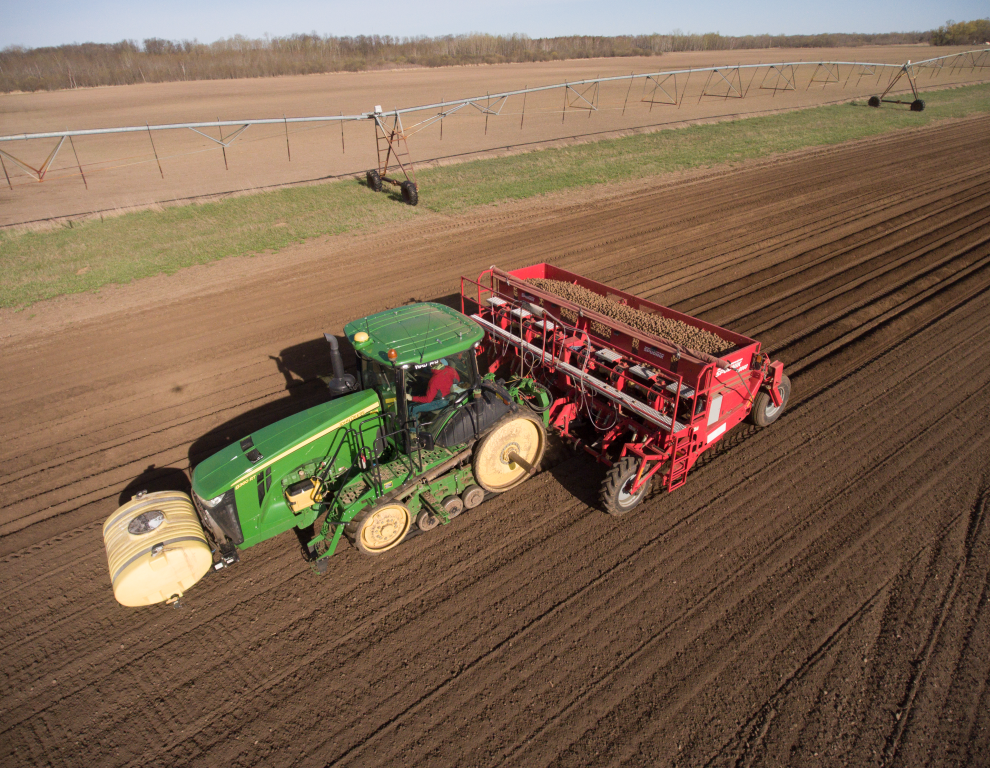

The 6 Row Conventional Planter delivers exceptional accuracy in seed placement, ensuring optimal crop performance. The simple yet durable design makes it easy to operate and maintain, minimizing downtime during the planting season. With customizable configurations, the 8060 can be tailored to fit the unique needs of any farm, providing efficiency and reliability for many years.
Model 8060
Number of Rows: 6
Alineación de la unidad de fila: en línea
Row Spacing: 32", 34", 36", 38" row spacing options
Seed Spacing (mechanical drive): 6 to 18 Inches or 15.24 to 45.72 Centimeters
Seed Spacing (hydraulic drive): 3 to 20 Inches or 7.62 to 50.80 Centimeters
Chasis
Hitching Mechanism: Pulled / Semi Mount
Tamaños de las ruedas de profundidad: 11.2/10-24
Requisitos del tractor
Horsepower: 180
Tractor Hydraulic Requirement per Remote: 8-12 gpm
Requiere controles remotos: de 3 a 4
Operating Oil Pressure: 2850
Dimensiones
Frame Length: 101 Inches or 2.57 Meters
Frame Width: 250
Transport Width with End Tow: 150 Inches
Transport Height (Hitch Dependent): 108 to 150 Inches
Filling Height with Extension: 108 Inches
Filling Height without Extension: 96 Inches
Empty Weight: 15,500 Pounds or 7,030.75 Kilograms
Standard Hopper Capacity: 120 Sacks
Extension Hopper Capacity: 160 Sacks
