8047 – 7 Row Potato Bed Planter
¿Tienes alguna pregunta o deseas un presupuesto? Ponte en contacto con nosotros en cualquier momento y estaremos encantados de ayudarte.
Obtener indicaciones
Hacer una llamada
Envíenos un fax ahora mismo
Enviar un correo electrónico
The Spudnik Bed Planter offers an innovative alternative to conventional planting by supporting modern bed planting practices. Research has shown that bed planting can improve uniformity in tuber size and shape, enhance water efficiency, and boost overall production.
Model Information

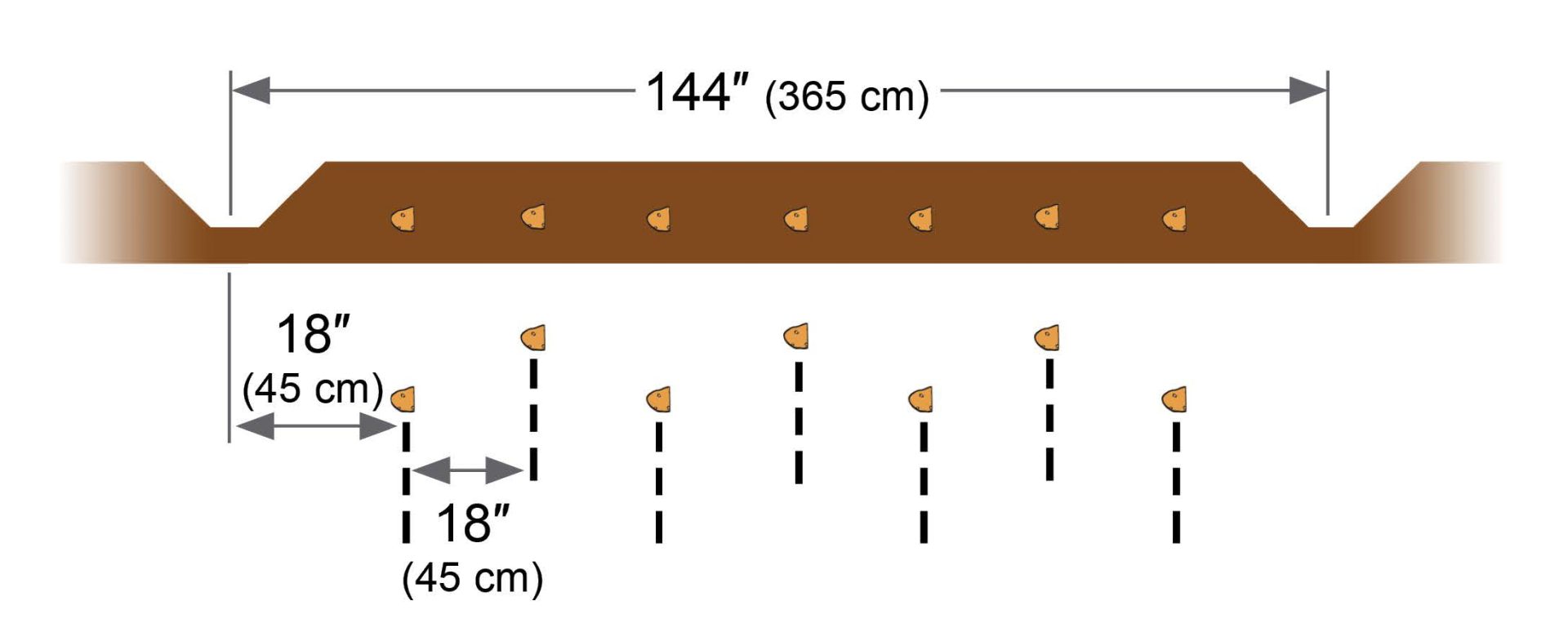

Number of Rows / Beds: 7 Rows / 1 Bed
Staggered
Row Spacing: 18 Inches or 45.72 Centimeters
Bed Spacing: 144 Inches
Seed Spacing - Hydraulic Drive: 3 to 20 Inches
Track Width : 144 Inches
Chasis
Hitching Mechanism: Pulled
Tamaños de las ruedas de profundidad: 11.2/10-24
Optional - Gage Wheel Sizes: 20.5/8.0-10 225/75-R15
Rear Axle: Walking Beam / Stretched
Tire Sizes: 14x24 Grader 14.9x24 R4 1300x24 Grader 11.25x24 Multi Rib
Row Unit
Cup Options: 2 to 3 Ounces
Requisitos del tractor
Tractor hp: 180 hp (135 kW)
Tractor Hydraulic Requirement per Remote: 8 - 12 gpm (30-45 l/min)
Required Remote: 3 to 4
Operating Oil Pressure: 2850 psi (196 bar)
Dimensiones
Frame Length: 149 Inches
Frame Width: 176 Inches
Transport Height (Hitch Dependent): 108 to 150 Inches
Filling Height (with / without extension): 96 to 108 Inches
Standard Hopper Capacity: 80 Short Hundredweight
Extension Hopper Capacity: 100 Short Hundredweight
Dimensiones de envío
Estimated Shipping Weight: 15500 Pounds or 7.03 Metric Tons
Utilice esto Calculadora de espaciamiento entre semillas para determinar el espaciamiento necesario entre semillas o la cantidad de semillas necesaria en libras por acre.
