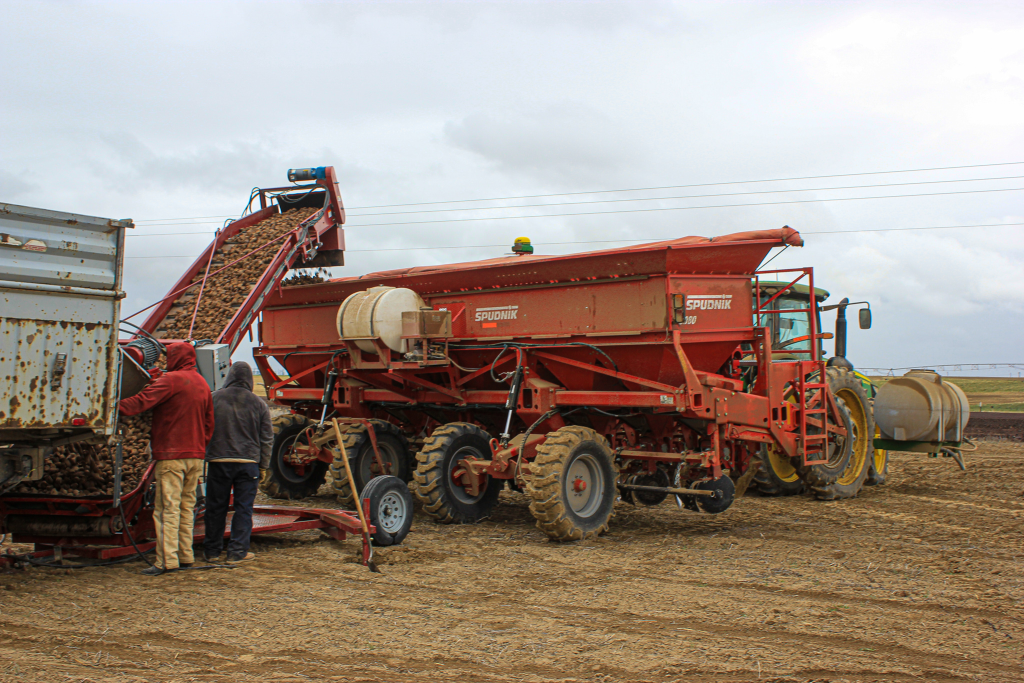

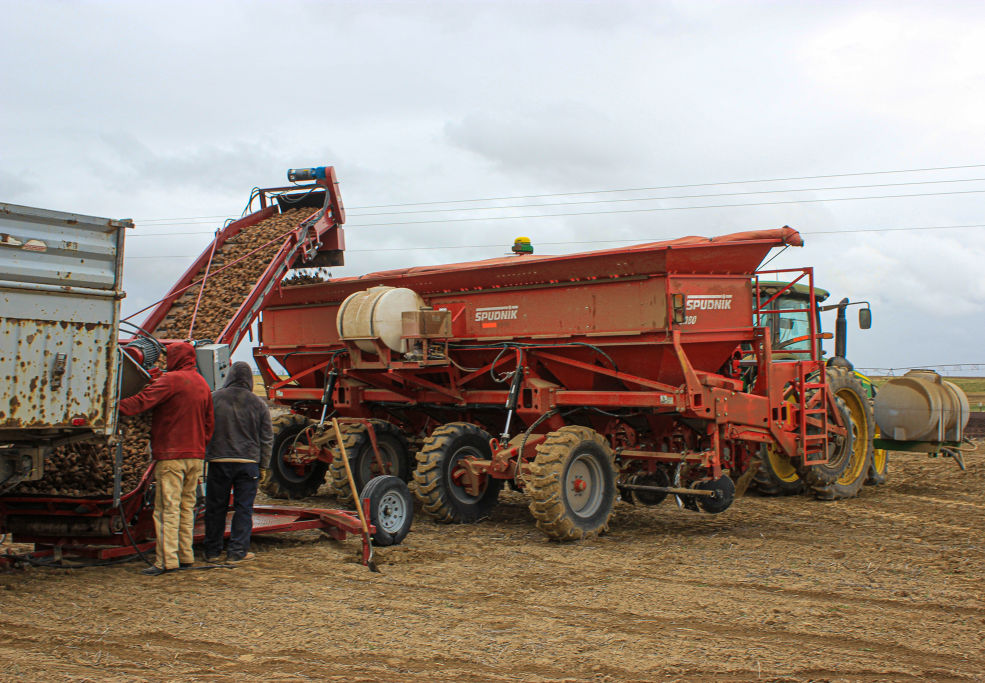

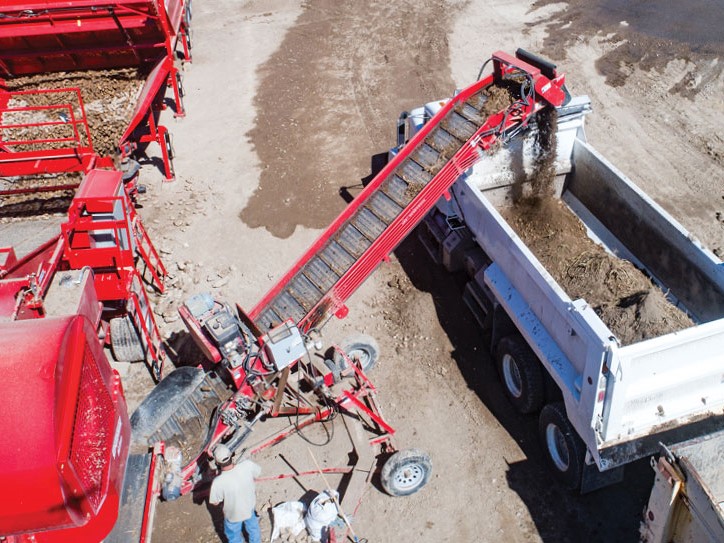

1115 – 30” Planter Filling Conveyor
¿Tienes alguna pregunta o deseas un presupuesto? Ponte en contacto con nosotros en cualquier momento y estaremos encantados de ayudarte.
Obtener indicaciones
Hacer una llamada
Envíenos un fax ahora mismo
Enviar un correo electrónico
Designed for efficient and gentle handling, it streamlines the process of filling containers with freshly harvested potatoes.
Datos técnicos
Capacity: 60 cwt/min
Belt Width: 30" or 762mm

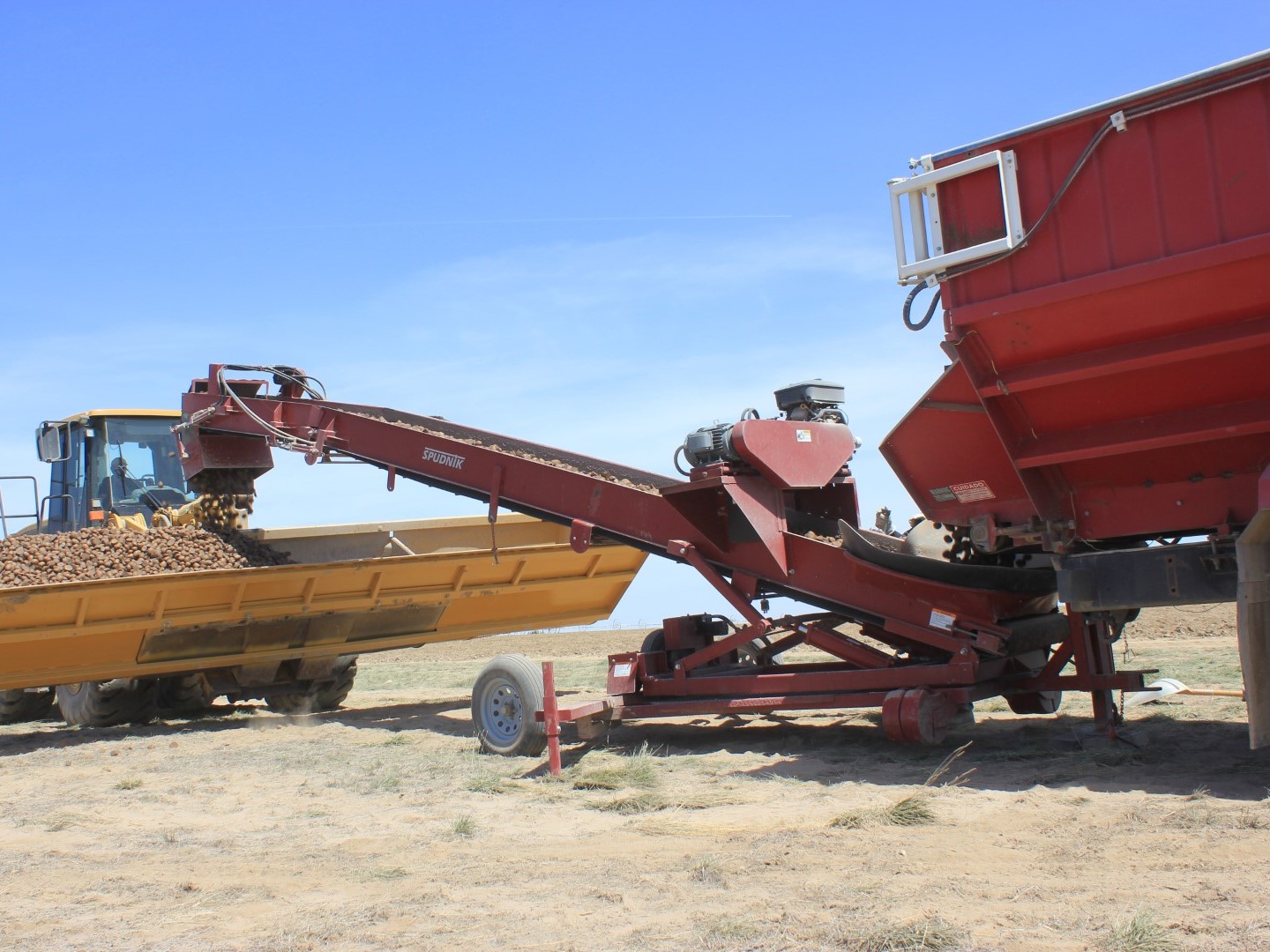

Drive Type: Electric Drive, Gas Engine Drive, Gas/Electric Combo Drive
Voltage: 230 Volt 1 Phase, 230 Volt 3 Phase, 480 Volt 3 Phase
Tipdown: 6’ 6”
Dimensiones
Distance from the hopper to the discharge chute in lowest and tallest position: 23' 4" to 22' 7" (7.162 m - 6.883 m)
Discharge Height: 30" to 15' 10" (76 cm - 482.6 cm)
Length: 23' 6" (7.16 m)
Tip Down Range: 44" (111.76 Centimeters)
Hopper Height / Jack Up: 35" (88.90 Centimeters)
Tip Down Length : 4' to 6' 6" (1.22 to 1.83 Meters)
Boom Swing Length: 26' 2"
Transport Length: 97" x 313" (2.5 x 7.9 m)
Transport Speed: 25 mph (40km/h)
Width: 8' 1" Inches
Tire Size: 670 x 15
Weight: 3500 Pounds or 1587.59 Kilograms
Dimensiones de envío 5200 Pounds or 2.36 Metric Tons
